430-3-6 Caldwell Dura-Lite Spreader Beam 3 ton 6 feet

Home » Custom Lifting Fixtures » Spreader Beams » 430-3-6 Caldwell Dura-Lite Spreader Beam 3 ton 6 feet

Rating | Write a Review | Read all Review (0) |

Product Description:

MISC SPREADER 430-3-6 6FT 3TON

CALDWELL DURA-LITE SPREADER

Item #

SKU:
44SPRBM-430-3-6
Price (ea.) $3,050.00
Brand
Stage Brand
Mfg. Model #
430-3-6
Ship Weight (lbs.)
64 lb
Availability Available in stock

Tech Specs
Country of Origin

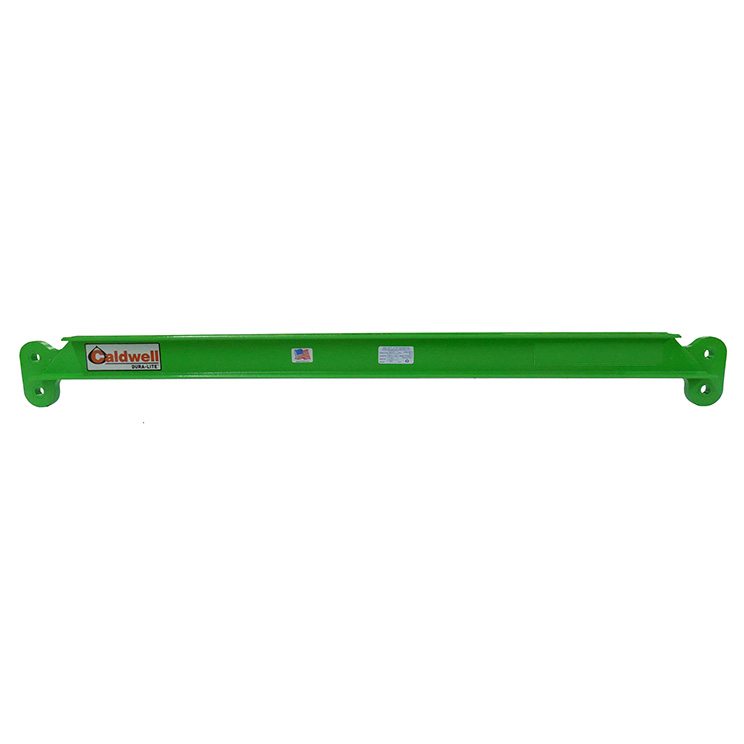

3 Ton x 6 feet Caldwell Dura-Lite Spreader Beam

Caldwell Dura-Lite™ equipment offers many advantages to a wide variety of applications and industries
• Composite material is not detected by radar, ideal for military applications.
• Lightweight composite beams do not reduce crane capacity as much as the steel equivalent.
• Beams 8' and under can be shipped via small package service saving time and money.
• Non-conductive materials are ideal for use in the utility industry.
• Marine applications and other harsh environments are no match for the non-corrosive properties of our composite beams.
• Dura-Lite™ beams are the lightweight, ergonomic solution needed to help reduce work related injuries.
• Service class 4 means that these lifters are designed for 2 million load cycles - that's over 30 years at 200 lifts per day!

Capacity: 3 Ton
Max. Spread: 6 feet
Headroom: 54 inches
Bottom Shackle: 3-1/4 Tons
Beam only Weight : 49 lbs.

FEATURES

Lightweight
Non-corrosive
Non-conductive
Can be used for a wide range of applications
Standard capacities range from 1/4 to 3 tons
Custom designed Dura-Lite equipment available
Incredibly strong and impact resistant

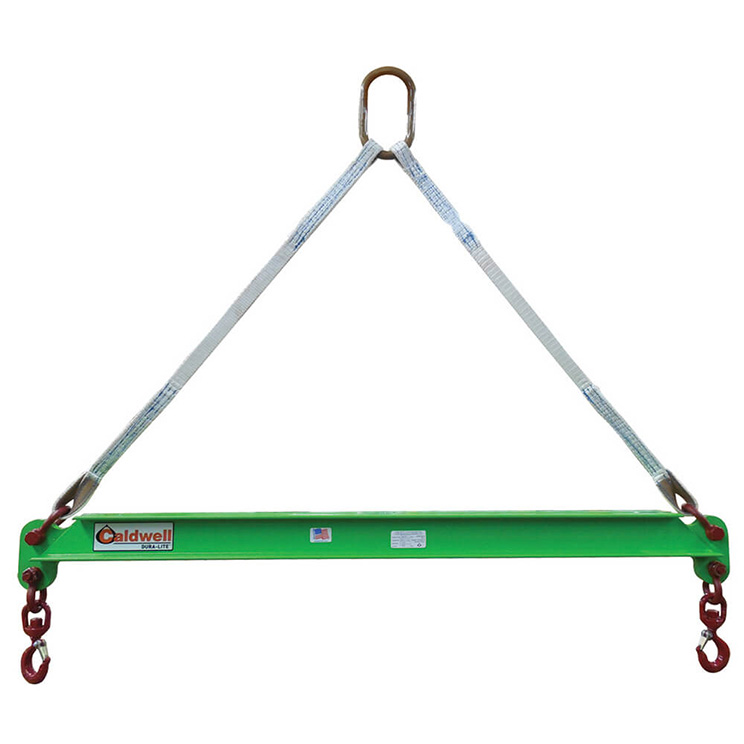

Supplied with lower shackles and hooks.
Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 4.
Proof-Tested to 200% capacity and certificates supplied

Specifications Click Here

Instruction Manual Click Here

Made in USA
